• Pilot-operatedstructure
• Standard solenoid valves are supplied as single coil units
• Cable entry could swivel 360
• Universal for both 5/2 way and 3/2 way valve
• Universal for both NAMUR and pipe connection mounting methods
• No need to add oil for lubrication
• SIL3
• CE
• CCC (Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db)
• EAC (1Ex db h IIC T6 Gb X, Ex h tb IllC T80℃ DbX)

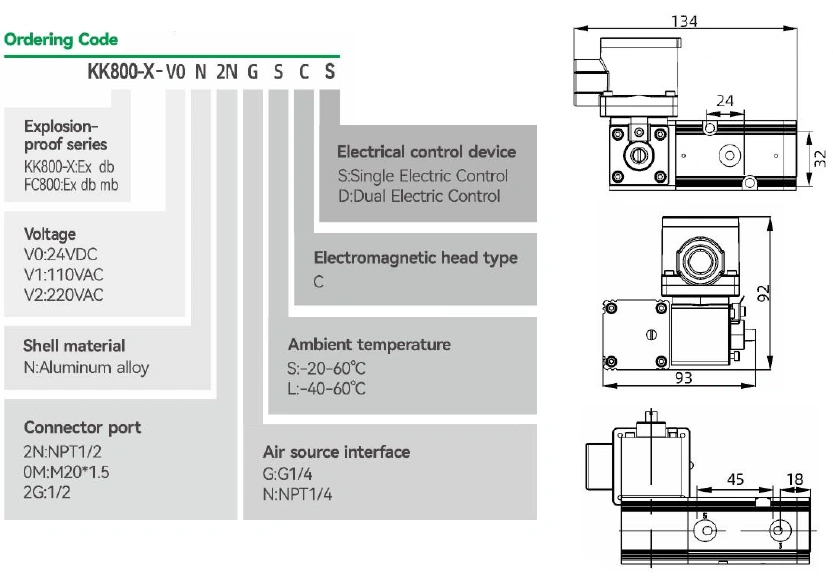

| Model | KK800-XC Series |
| Material of body | Aluminum Alloy |
| Finishing | Anodized (electroless nickel plating) |
| Enclosure | Weatherproof enclosure IP66 |
| Fluid | Air (to be filtered by 40μm filter element) |
| Valve type | Universal for both 5/2 way and 3/2 way |
| Operating pressure | 1~8 bar |
| Temperature | -20~60℃,-40~60℃ |
| Orifice size CV | 25mm² CV=1.4 |
| Voltage & Consumed power | 3.5W 110/220VAC |
| Port size | G1/4", NPT1/4" |
| Cable Entry | M20*1.5, NPT1/2", G1/2" |
| Product life | More than 3.5million times (under normal working conditions) |
Note 1: Once lubricated air is used, continue with the same medium to optimise valve lifespan.
Lubricants like ISO VG32 or equivalent are recommended.
Note 2: Equivalent orifice S and Cv are all calculated from the flow rate data.
