• Internally piloted structure
• Structure in sliding column mode: good tightness and sensitive reaction
• Double control solenoid valves have memory function
• No need to add oil for lubrication
• Install in the side plate with the surface upward, which can be used by directly connecting with the actuators
• Affiliated manual devices are equipped to facilitate installation and debugging
• Integrate with the manifold to save installation space.
EAC (TR CU 010/2011,TR CU 020/2011)
| Model | KK-4V310-08 | KK-4V320-08 | KK-4V310-10 | KK-4V320-10 |
| Material of body | Aluminum alloy | |||
| Fluid | Air (to be filtered by 40μm filter element) | |||
| Acting | Internal pilot | |||
| Valve type | 5 port 2 position (5/2 way) | |||
| Operating pressure | 0.15~0.8 Mpa (21~114 psi) | |||
| Proof pressure | 1.2 Mpa (175 psi) | |||
| Temperature | -20~+70℃ | |||
| Lubrication (note 1) | Not required | |||
| Max. frequency (note 3) | 4 cycle/sec | |||
| Port size (note 2) | In=Out=Exhause=1/4" | In=Out=3/8" | ||
| Exhaust=1/4" | ||||
| Orifice size CV (note 4) | 28.0mm² (CV=1.65) | |||
| Weight | 310g | 400g | 310g | 400g |
Note 1: Once lubricated air is used, continue with the same medium to optimise valve lifespan. Lubricants like ISO VG32 or equivalent are recommended.
Note 2: PT thread, G thread and NPT thread are available.
Note 3: The maximum actuation frequency is in the no-load state.
Note 4: Equivalent orifice S and Cv are all calculated from the flow rate data.

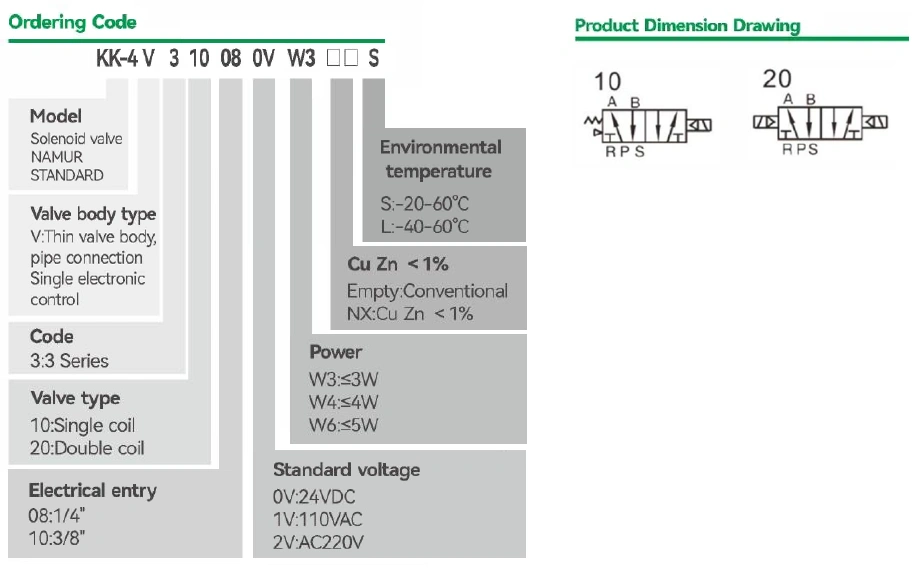

| Model | 4V310-08, 4V320-08, 4V310-10, 4V320-10 | ||||
| Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0w | 2.5w |
| Scope of voltage | AC:±15%, DC:+10% | ||||
| Protection grade | IP 66 | ||||
| Temperature classification | B Class | ||||
| Electical entry | Terminal | ||||
| Activating time | 0.05sec and below | ||||

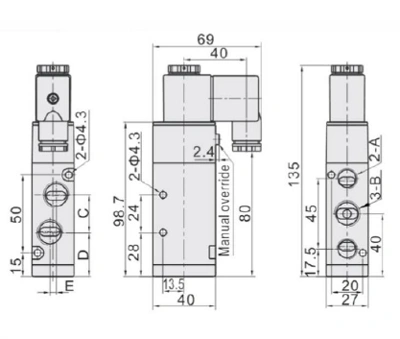

4V310
 |
Model/Item | A | B | C | D | E |
| 4V310-08 | 1/4" | 1/4" | 22 | 29 | 0 | |
| 4V310-10 | 1/4" | 3/8" | 24 | 28 | 4 |

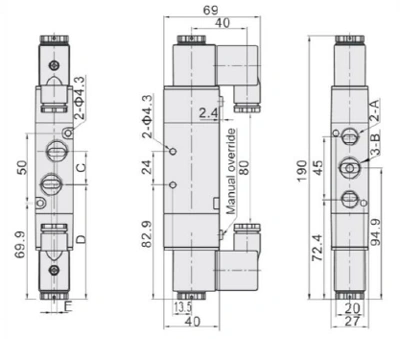

4V320
 |
Model/Item | A | B | C | D | E |
| 4V320-08 | 1/4" | 1/4" | 22 | 29 | 0 | |
| 4V320-10 | 1/4" | 3/8" | 24 | 28 | 4 |
