• Internally piloted structure
• Structure in sliding column mode: good tightness and sensitive reaction
• Double control solenoid valves have memory function
• No need to add oil for lubrication
• Install in the side plate with the surface upward, which can be used by directly connecting with the actuators
• Affiliated manual devices are equipped to facilitate installation and debugging
• Integrate with the manifold to save installation space.
EAC (TR CU 010/2011,TR CU 020/2011)

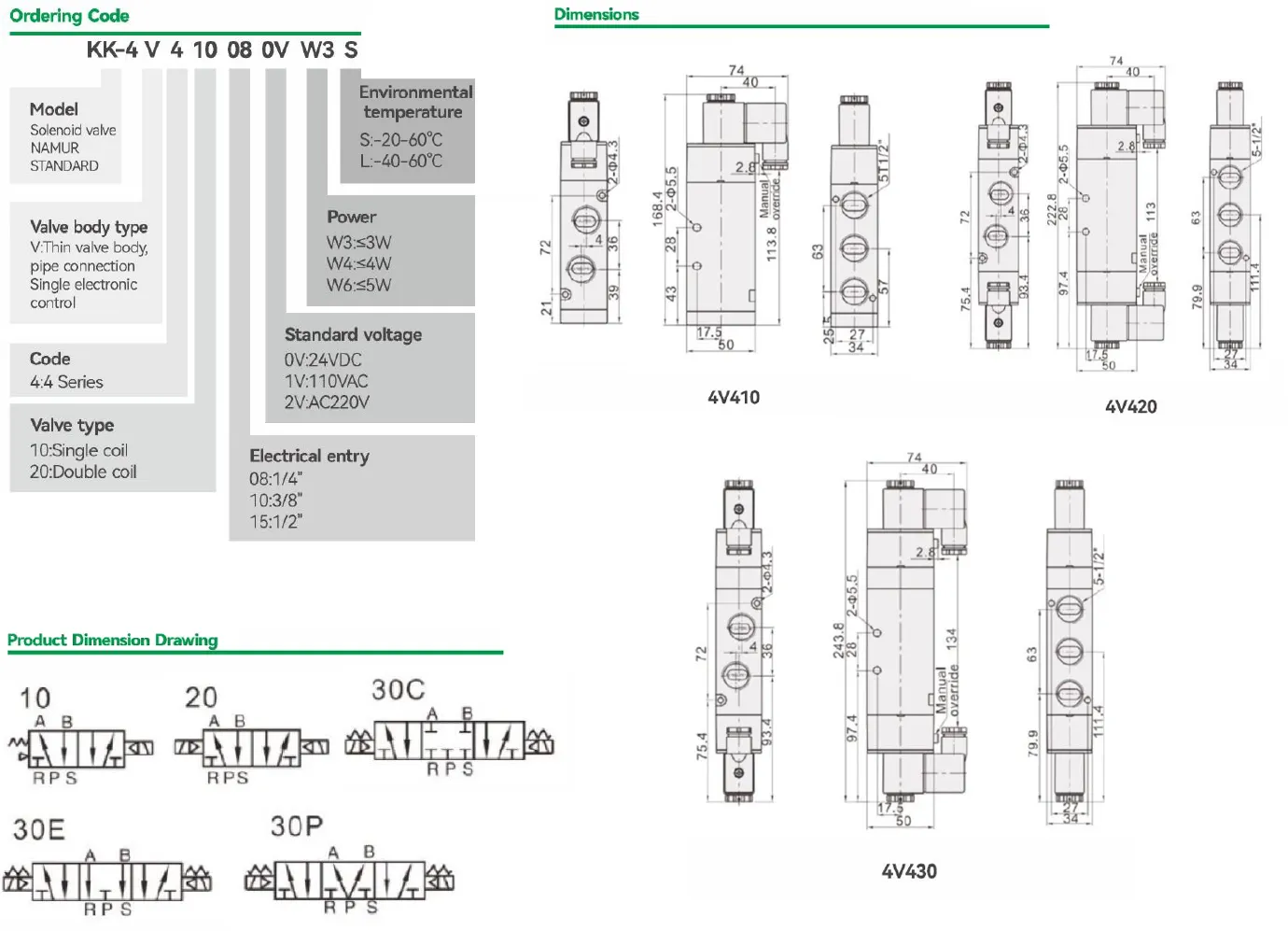

| Model | KK-4V410-08 | KK-4V420-08 | KK-4V410C-15 | KK-4V430E-15 | KK-4V430P-15 |
| Material of body | Aluminum alloy | ||||
| Fluid | Air (to be filtered by 40um filter element) | ||||
| Acting | Internal pilot | ||||
| Valve type | 5 port 2 position (5/2way) | 5 port 3 position (5/3way) | |||
| Operating pressure | 0.15~0.8 Mpa (21~114 psi) | ||||
| Proof pressure | 1.2 Mpa (175 psi) | ||||
| Temperature | -20~+70℃ | ||||
| Lubrication (note 1) | Not required | ||||
| Max. frequency (note 3) | 3 cycle/sec | ||||
| Port size (note 2) | In=Out=Exhause=1/2" | ||||
| Orifice size CV (note 4) | 4V410-15, 4V420-15:48.0mm² (CV=2.82) | ||||
| 4V430C-15:40.0mm² (CV=2.35) | |||||
| Weight | 590g | 720g | 770g | ||
Note 1: Once lubricated air is used, continue with the same medium to optimise valve lifespan. Lubricants like ISO VG32 or equivalent are recommended.
Note 2: PT thread, G thread and NPT thread are available.
Note 3: The maximum actuation frequency is in the no-load state.
Note 4: Equivalent orifice S and Cv are all calculated from the flow rate data.
| Model | 4V410-15, 4V420-15, 4V430C-15, 4V430E-15, 4V430P-15 | ||||
| Standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Power consumption | 4.5VA | 4.5VA | 5.0VA | 3.0w | 2.5w |
| Scope of voltage | AC:±15%, DC:+10% | ||||
| Protection grade | IP 66 | ||||
| Temperature classification | B Class | ||||
| Electical entry | Terminal | ||||
| Activating time | 0.05sec and below | ||||
