Sanitary Pneumatic Butterfly Valve

Nominal diameter: DN15-DN100

Pressure range: 0-10bar

Working Temp: -20℃~+120℃

Sealing: EPDM, CSM, Silicone rubber

Body: SS304, SS316L

Disc: SS304, SS316L

Size

DN15~DN100

Pressure Range

0-10bar

Body Material

SS304, SS316L

Get a Quote

Download Drawings

Product Overview

Feature: Two-way sealing with zero leakage, outer spherical design of butterfly plate, no pin structure

Medium: drinking water, high-purity water, seawater, air

Control pressure: 3bar-8bar

Connection standard: 3A, DIN, ISO, SMS

upload/1c/202608/sanitary-pneumatic-butterfly-valve-2.webp

Specifications

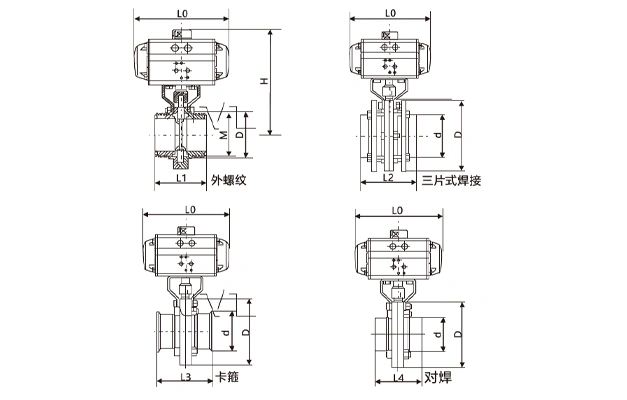

Overview Dimension

DN	External thread connection dimensions			3PC connection dimensions			3 Tri-clamp connection dimensions			Welded connection dimensions			L0	H	Actuator Model
DN	L1	D	M	L2	D	d	L3	D	d	L4	D	d	L0	H	Actuator Model
15	66	78	RD34×1/8	100	78	19.05	66	78	50.5	66	78	19.05	141/141	157/557	JATD52/JATS52
20	66	78	RD44×1/6	100	78	25.4	66	78	50.5	66	78	25.4	141/141	157/557	JATD52/JATS52
25	66	78	RD52×1/6	100	78	31.8	66	78	50.5	66	78	31.8	141/141	157/557	JATD52/JATS52
32	70	86	RD58×1/6	100	86	38.1	70	86	50.5	70	86	38.1	141/141	157/557	JATD52/JATS52
40	76	102	RD65×1/6	104	102	50.8	76	102	50.5	76	102	50.8	141/141	171/180	JATD52/JATS63
50	80	115	RD78×1/6	112	115	63.5	80	115	64	80	115	63.5	141/141	169/169	JATD63/JATS63
65	84	128	RD95×1/6	112	128	76.1	84	128	91	84	128	76.1	159/211	194/208	JATD63/JATS75
80	90	139	RD110×1/4	120	139	88.9	90	139	106	90	139	88.9	159/248	200/224	JATD63/JATS83
100	104	159	RD130×1/4	128	156	101.6	102	156	119	102	156	101.6	211/248	220/242	JATD75/JATS92
