Size: DN40-1200 mm
Pressure: 0.6, 1.0, 1.6, 2.5, 4.0 MPa; 150 Lb, 300 Lb
Size standard: GB standard, American standard
Connection: Wafer connection
Material of valve body: Cast iron, Carbon steel (WCB), Stainless steel (CF8, CF8M, CF3M)
Product Overview
Seat material: Metal seal (H, Y), PTFE (F)
Action mode: Double action, Single action (Spring Return)
Control mode: ON/OFF type, Adjusting type
Accessories: Solenoid valve, Positioner, Limit switch, AFR, Manual Gear
Specifications

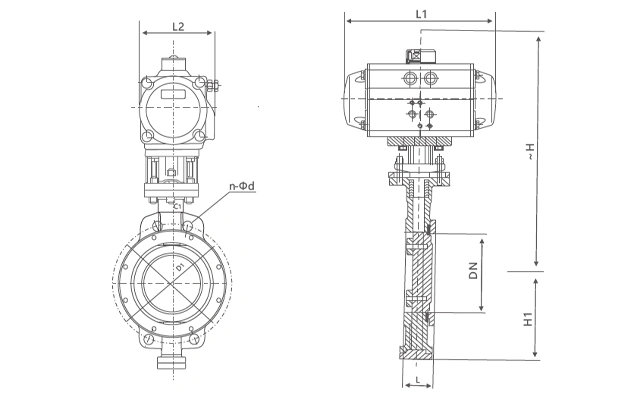

D673H(F, Y)-PN16.(1.6MPa) Overview Dimension (mm)
| Nominal diameter DN |
Dimension | Connecting Size | Actuator Model | |||||
| L | L1 | L2 | ~H | H1 | D1 | n-Φd | ||
| 50 | 43 | 159/211 | 83/95 | 277/205 | 65 | 125 | 4-18 | AT063D/AT0075S |
| 65 | 46 | 211/248 | 95/107 | 287/315 | 75 | 145 | 4-18 | AT075D/AT088S |
| 80 | 46 | 248/269 | 107/123 | 365/375 | 85 | 160 | 8-18 | AT088D/AT100S |
| 100 | 52 | 269/315 | 123/141 | 420/436 | 130 | 180 | 8-18 | AT100D/AT115S |
| 125 | 56 | 315/345 | 141/152 | 436/462 | 175 | 210 | 8-18 | AT115D/AT125S |
| 150 | 56 | 345/409 | 152/172 | 466/543 | 190 | 240 | 8-22 | AT125D/AT145S |
| 200 | 61 | 409/438 | 172/187 | 593/665 | 215 | 295 | 12-22 | AT145D/AT165S |
| 250 | 68 | 438/559 | 187/215 | 682/752 | 265 | 355 | 12-26 | AT160D/AT190S |
| 300 | 78 | 550/600 | 215/240 | 725/772 | 305 | 410 | 12-26 | AT190D/AT210S |
| 350 | 78 | 600/633 | 240/262 | 832/880 | 340 | 470 | 16-26 | AT190D/AT240S |
| 400 | 102 | 633/730 | 262/330 | 862/968 | 360 | 525 | 16-26 | AT210D/AT240S |
| 450 | 114 | 633 | 262 | 945/1005 | 400 | 585 | 16-30 | AT240D/AT270S |
| 500 | 127 | 730 | 300 | 1058/1060 | 430 | 650 | 20-33 | AT270D/AW25S |
| 600 | 154 | 1320/1970 | 440/480 | 1108/1195 | 190 | 770 | 20-36 | AW25/AW28S |
| 700 | 165 | 1430/2700 | 480/560 | 1170/1255 | 555 | 840 | 24-36 | AW28/AW35S |
| 800 | 190 | 1430/2700 | 480/560 | 1325/1365 | 620 | 950 | 24-39 | AW28/AW35S |
Note: Series ball valves can be designed and manufactured according to the JB/T79 standard or the user's requirements.
Note: Data XXX/XXX are for pneumatic actuator double acting/single acting (spring reset), respectively.
Note: according to the different torque of the valve, the actuator type may be different; the size will change.
Note: the above actuator configuration and data are for a soft seal (F) valve; for a hard seal valve configuration and data, please consult our company
