Size: DN50~1200mm
Pressure: 0.6, 1.0, 1.6, 2.5MPa; 150Lb, 300Lb
Connection: Wafer, Flanged
Dimension standard: GB, American Standard
Product Overview
Body Material: Cast iron,Carbon Steel(WCB), Stainless Steel（CF8、CF8M)
Seat Material: Rubber(X), PTFE(F)
Mode of Action: Double-acting, Single-acting (Spring Return)
Mode of Control: ON/OFF Type, Adjusting Type
Annex Choice: Solenoid Valve, POSITIONER, Limit Switch, F.R.L. Manual Gear
Specifications

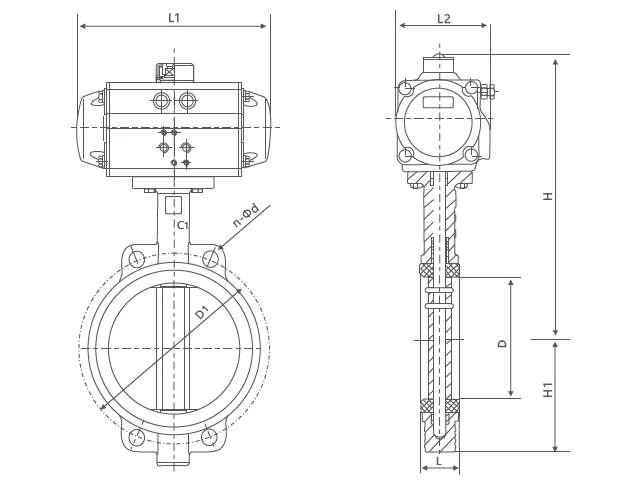

D67X(F, F4, J)-PN6.0, 10(0.6~1.0MPa) Overview Dimension (mm)
| Nominal diameter DN |
Dimension | Connecting Size | Actuator Model | ||||||
| L | L1 | L2 | ~H | H1 | D | D1 | n-Φd | ||
| 50 | 42 | 141/159 | 71/83 | 269/281 | 68 | 52.9 | 120 | 4-23 | AT050D/AT063S |
| 65 | 44.7 | 159/211 | 83/95 | 283/303 | 75 | 64.5 | 136.2 | 4-26.5 | AT063D/AT075S |
| 80 | 45.2 | 159/211 | 83/107 | 289/309 | 93 | 78.8 | 160 | 8-18 | AT063D/AT088S |
| 100 | 52.1 | 211/269 | 95/123 | 320/338 | 104 | 10.4 | 185 | 4-24.5 | AT075D/AT100S |
| 125 | 54.4 | 248/269 | 107/123 | 351/366 | 118 | 123.3 | 215 | 4-23 | AT088D/AT100S |
| 150 | 55.8 | 269/345 | 123/152 | 380/405 | 133 | 155.6 | 238 | 4-25 | AT100D/AT125S |
| 200 | 60.6 | 345/409 | 152/172 | 435/477 | 165 | 202.5 | 295 | 4-25 | AT125D/AT145S |
| 250 | 65.6 | 409/438 | 172/187 | 509/552 | 197 | 250.5 | 357 | 4-29 | AT145D/AT160S |
| 300 | 76.5 | 438/550 | 187/215 | 597/622 | 224 | 301.8 | 407 | 4-29 | AT160D/AT190S |
| 350 | 76.5 | 550/600 | 215/240 | 653/688 | 267 | 333.3 | 467 | 4-30 | AT190D/AT210S |
| 400 | 86.5 | 550/600 | 215/262 | 720/787 | 309 | 389.6 | 515 | 4-30 | AT190D/AT240S |
| 450 | 105.6 | 600/633 | 240/262 | 772/858 | 328 | 440.51 | 565 | 4-30 | AT210D/AT240S |
| 500 | 131.8 | 633/730 | 262/330 | 867/1004 | 361 | 491.5 | 620 | 4-33 | AT240D/AT270S |
| 600 | 152 | 730/1700 | 330/- | 998/1220 | 459 | 592.5 | 725 | 4-36 | AT270D/AW25S |
| 700 | 163 | 1320/1970 | -/- | 1116/1282 | 520 | 695 | 840 | 4-36 | AW25/AW28S |
| 800 | 188 | 1430/2700 | -/- | 1330/1007 | 591 | 794.7 | 950 | 4-39 | AW28/AW35S |
Note: Date XXX/XXX represents the double-acting/single-acting type (spring reposition) of pneumatic actuator
Note: The reactive sizes are subject to change in response to differences in valve torque, medium and actuator model.
