Low torque aesthetics, high strength, corrosion resistance, and long life
Specifications

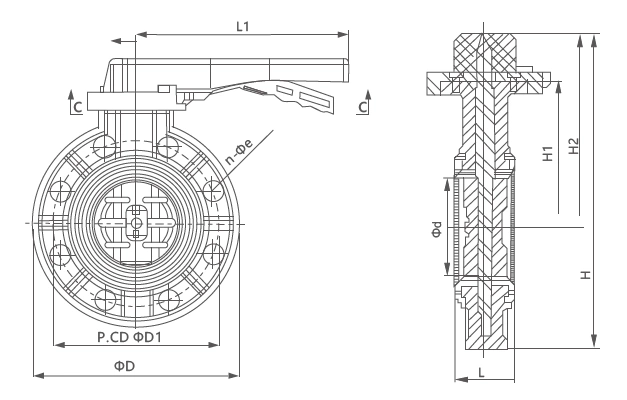

Dimensions of handle butterfly valve
| Size | DN | ΦD | P.C.D.ΦD.1 | Φd | L | Φ1 | L1 | W | H1 | H2 | H | n-Φe | PSI | Mpa | ||||
| DIN | ANSI | JIS | DIN | ANSI | JIS | |||||||||||||
| 2" | 65 | 160 | 160 | 121 | 120 | 48 | 43 | 124 | 190 | 55 | 100 | 143 | 223 | 4-19 | 4-19 | 4-19 | 150 | 1 |
| 2½" | 65 | 180 | 180 | 140 | 140 | 63 | 46 | 124 | 190 | 55 | 112 | 155 | 245 | 4-19 | 4-19 | 4-19 | 150 | 1 |
| 3" | 80 | 196 | 196 | 152 | 150 | 78 | 49 | 124 | 240 | 55 | 120 | 172 | 270 | 8-19 | 4-19 | 8-19 | 150 | 1 |
| 4" | 100 | 228 | 228 | 191 | 175 | 98 | 54 | 124 | 240 | 55 | 140 | 194 | 380 | 8-19 | 8-19 | 8-19 | 150 | 1 |
| 5" | 125 | 258 | 258 | 216 | 210 | 122 | 64 | 170 | 310 | 72 | 168 | 223 | 352 | 8-19 | 8-19 | 8-19 | 150 | 1 |
| 6" | 150 | 287 | 287 | 241 | 240 | 146 | 70 | 170 | 310 | 72 | 181 | 239 | 382 | 8-23 | 8-23 | 8-23 | 150 | 1 |
| 8" | 200 | 344 | 344 | 298 | 290 | 199 | 88 | 170 | 310 | 72 | 215 | 280 | 452 | 8-23 | 8-23 | 12-23 | 100 | 0.6 |
