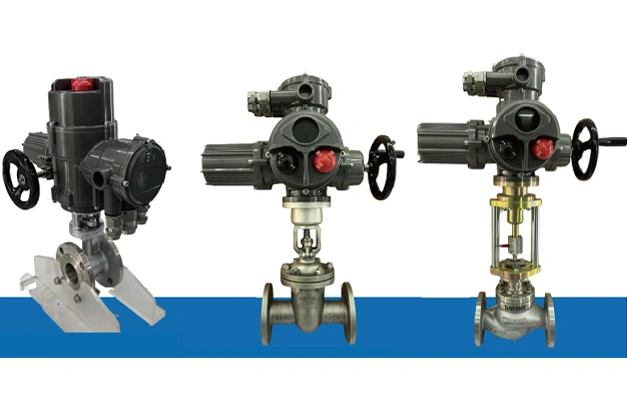

This type of output is driven by straight thrust. The EML series straight-stroke electric actuator consists of a multi-turn electric actuator and a linear unit, mainly used in conjunction with a regulating valve. The maximum thrust can reach 1000kN, and the adjustment accuracy can reach up to 0.5%.
According to customer needs, we provide overall technical solutions and supporting products, mainly including complete sets of valves, complete sets of air doors, and other complete sets of equipment, including actuators. The company provides a series of services such as design, production, commissioning, and maintenance to provide complete solutions.
| Basic Performance Parameters | |
| Power supply | Three-phase 380VAC 50HZ, Single-phase 220VAC 50HZ optional. |
| Special voltage | AC: AC230V, AC400V, AC415V, AC440V, AC460, AC480V, AC550V, etc. |
| DC: DC24V, DC48V, DC72V, DC96V, etc. | |
| Relative humidity | ≤ 95%RH(40℃) |
| Environmental temperature | -30 ℃~+70 ℃. |
| Work schedule | S2 15 minutes, S4, S5, etc. |
| Protection level | IP68 |
| Insulation level | F |
| Anti-corrosion protection level | WF2 |
| Mechanical lifespan | ≥ 40000 cycles |
| Input signal | DC 4-20mA (Adjustable type) |
| DC24V, AC24V or passive contacts ( Open-close type) | |
| Output signals | 4 sets of status output contacts, 1 set of remote indication output contacts, and 1 set of fault alarm output contacts. |
| 4 switch command signal capacities | 24VDC-10%~+30%, maximum 30mA.(Can be powered internally or externally.) |
| 6 feedback command signal capacities | 250Vac/5A or 30VDC/5A (Customizable programmable) |
| Maximum impedance of input analog signal | 250Ω(Isolated design, strong anti-interference ability.) |
| Maximum impedance of feedback analog signal | 750Ω (Isolated design, strong anti-interference ability.) |
| Basic error (Adjustable type) | ≤ 1% |
| Repeatability (Regulatory type) | ≤ 1% |
| Sensitivity (Adjustable) | Adjustable from 0.5% to 5%. |
| Handheld infrared remote control | Can be wirelessly set within 8 meters. |
| Inlet hole | 2 * 3/4NPT+1 * 1NPT |

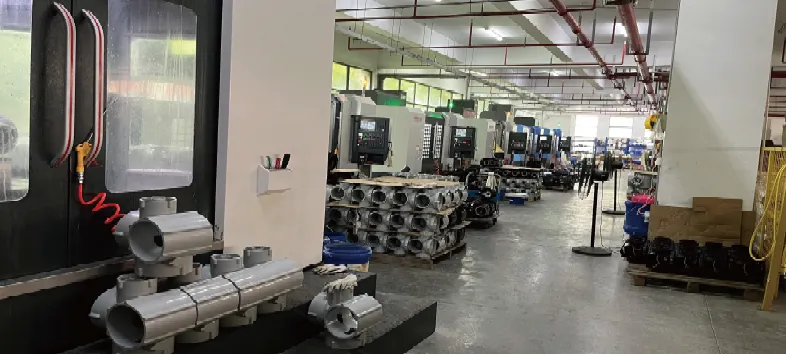

We treat every process with internationally recognized product production standards. All shell and box processing is carried out using CNC machining centers, and all transmission gear processing is carried out using CNC hobbing machines and CNC gear hobbing machines. This not only improves production efficiency but also greatly enhances the matching accuracy of mechanical components, ensuring high precision, high efficiency, and long service life of internal transmission components of the actuator.
The electrical supplier has a complete set of electrical control system production lines, introduced SMT fully automatic surface mount production lines, plug-in assembly lines, high-temperature aging rooms, and independently developed various automatic testers required in the production process to ensure the reliability and stability of the electrical control part.
