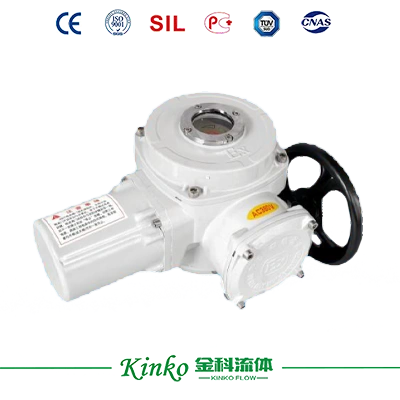

The HQ series electric valve actuators are designed for small-to-medium-sized valves requiring 90-degree rotation—such as butterfly valves and ball valves—as well as other similar equipment.
Product Overview
As stable and reliable quarter-turn actuators, they meet the requirements of various control systems and operating environments. An integrated drive mechanism design results in a compact size and a streamlined appearance. The design features a safe, reliable manual override system that allows for fully automatic switching between manual and electric modes without the need for a manual engagement lever. Excellent protection ratings accommodate diverse configurations, including explosion-proof, integral on/off, and integral modulating models.
Specifications
| Model | HQ Series |
| Power Supply | Motor: 3-phase AC 380V/50Hz |
| Control: Single-phase AC 220V/50Hz (Exd IIBT4) | |
| Optional power supply: AC 220–660V, 50/60Hz (specify when ordering) | |
| Ambient Temperature | -20℃ to +60℃; optional range: -40℃ to +70℃ |
| Relative Humidity | ≤95% (at 25℃) |
| Operating Environment | Standard type: For locations free from flammable, explosive, or highly corrosive media |
| Explosion-proof type: For environments containing explosive gas mixtures of Class IIA/IIB and Temperature Classes T1-T4 | |
| Protection Class | IP65/67 (IP68 available upon special order) |
| Motor Duty | Rated operating time of 10 minutes; Class F insulation |
| Anti-corrosion Coating | High-temperature baked finish |

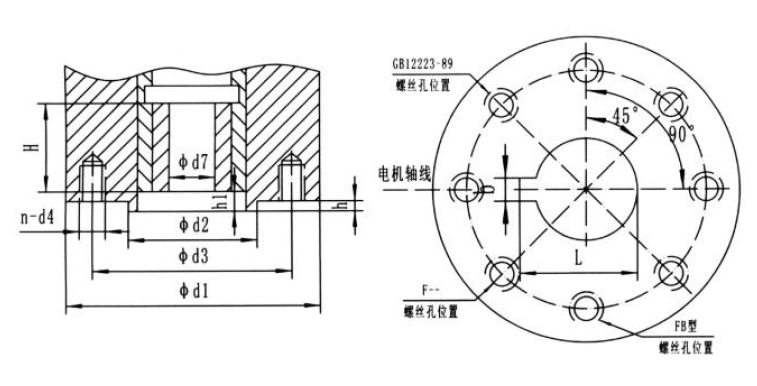

Connection Dimensions
| Model | Flange type | d1 | d2 | d3 | n-d4 | D7 | H | h | h1 | ||
| Reserved | Maximum | ||||||||||
| HQ05 | FB1 | 77 | 57 | 4-M6 | 12.7 | 12.7 | 35 | ||||
| HQ10 | FB1 | 77 | 57 | 4-M6 | 15.9 | 15.9 | 35 | ||||
| F05 | 65 | 35 | 50 | 4-M6 | 8 | 18 | 35 | 3 | 2 | ||
| HQ15 HQ20 |
FB2 | 92 | 70 | 4-M8 | 19 | 19 | 42 | ||||
| F07 | 90 | 55 | 70 | 4-M8 | 12 | 28 | 42 | 3 | 2 | ||
| HQ30 HQ40 |
FB3 | 115 | 89 | 4-M12 | 22.2 | 22.2 | 42 | ||||
| F10 | 125 | 70 | 102 | 4-M10 | 12 | 28 | 42 | 3 | 2 | ||
| HQ60 | FB3 | 115 | 89 | 4-M12 | 28.6 | 28.6 | 50 | ||||
| F10 | 125 | 70 | 102 | 4-M10 | 15 | 38 | 50 | 3 | 2 | ||
| HQ120 | FB4 | 140 | 108 | 4-M12 | 31.7 | 31.7 | 50 | ||||
| F12 | 150 | 85 | 125 | 4-M12 | 15 | 38 | 50 | 3 | 2 | ||
| HQ180 | FB5 | 197 | 159 |
4-M16 |
33.3 |
33.3 |
60 |
||||
| F14 | 175 | 100 | 140 | 4-M16 | 20 | 38 | 60 | 3 | 3 | ||
| HQ300 | FB5 | 197 | 159 | 4-M16 | 41.3 | 41.3 | 90 | ||||
| HQ500 | F16 | 210 | 130 | 165 | 4-M20 | 20 | 60 | 90 | 3 | 3 | |
| Note: The above specifications apply to standard supply; please specify any special requirements when placing an order. | |||||||||||
Specifications Table
| Model/Specification | Output Torque N·m |
Output Speed r/min |
Max. Stem Diameter mm |
Manual Gear Ratio | Motor Power W |
Rated Current A |
Reference Weight kg |
| HQ05 | 50 | 1 | 19 | 60 | 45 | 0.35 | 8.5 |
| HQ10 | 100 | 1 | 19 | 60 | 60 | 0.48 | 8.6 |
| HQ15 | 150 | 1 | 19 | 60 | 75 | 0.55 | 8.7 |
| HQ20 | 200 | 1 | 28 | 90 | 90 | 0.65 | 12.7 |
| HQ30 | 300 | 1 | 28 | 90 | 120 | 0.75 | 12.7 |
| HQ40 | 400 | 1 | 28 | 90 | 150 | 0.85 | 13 |
| HQ60 | 600 | 1 | 38 | 87 | 180 | 0.95 | 21 |
| HQ120 | 1200 | 1 | 38 | 87 | 250 | 1.3 | 21 |
| HQ180 | 1800 | 1 | 38 | 87 | 370 | 1.7 | 23 |
| HQ300 | 3000 | 0.5 | 55 | 348 | 370 | 1.7 | 35 |
| HQ500 | 5000 | 0.5 | 55 | 348 | 550 | 2.5 | 35 |
| Note: The above specifications apply to standard supply; please specify any special requirements when placing an order. | |||||||

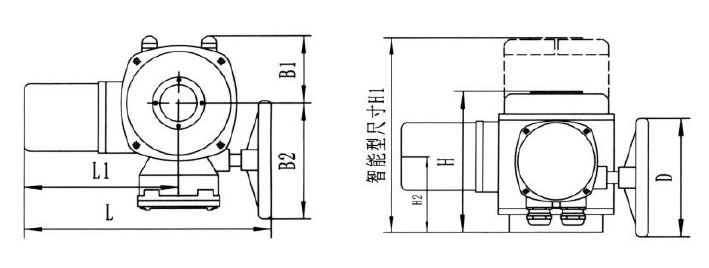

Overall Dimensions
| Model | B1 | B2 | H | H1 | H2 | L | L1 | D |
| HQ05/15 | 68 | 114 | 156 | 270 | 73 | 250 | 157 | 140 |
| HQ20/40 | 91 | 157 | 191 | 273 | 103 | 332 | 208 | 160 |
| HQ60/180 | 143 | 203 | 227 | 309 | 126 | 424 | 232 | 250 |
| HQ300/500 | 143 | 203 | 291 | 373 | 190 | 424 | 232 | 250 |
