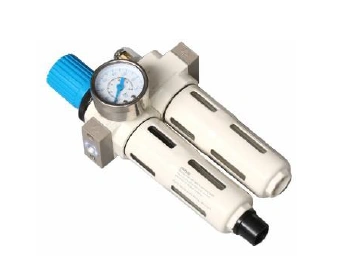

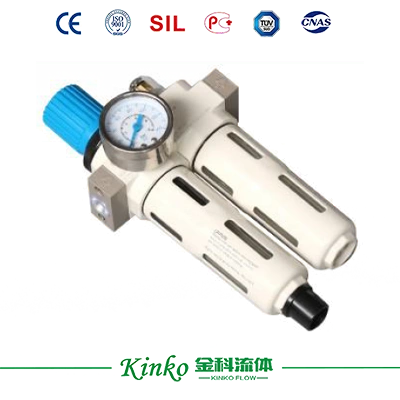

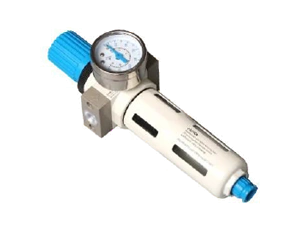

KINKO MINI series filter regulator offers G1/8" to G3/8" port options with 0.05-0.85MPa range and 90CC bowl, providing compact air preparation for space-constrained pneumatic control systems.
Product Overview
Specifications
| Model | OFR-MINI series | Model | LRC-MINI series | ||
 |
 |
||||
| Material | Housing | Aluminum alloy | Material | Housing | Aluminum alloy |
| Bowl | PC | Bowl | PC | ||
| Bowl guard | Aluminum alloy | Bowl guard | Aluminum alloy | ||
| Sealing | NBR | Sealing | NBR | ||
| Adjusting knob | POM | Adjusting knob | POM | ||
| Regulating range | 0.05~0.85 Mpa | Regulating range | 0.05~0.85 Mpa | ||
| Max. service pressure | 1Mpa | Max. service pressure | 1Mpa | ||
| Ensure pressure resistance | 1.5Mpa | Ensure pressure resistance | 1.5Mpa | ||
| Filtering accuracy | 40μm or 5μm | Filtering accuracy | 40μm or 5μum | ||
| Recommended oil | ISOVG 32 | Recommended oil | ISOVG 32 | ||
| Temperature | -5~60℃ | Temperature | -5~60℃ | ||
| Valve type | Diaphragm type | Valve type | Diaphragm type | ||

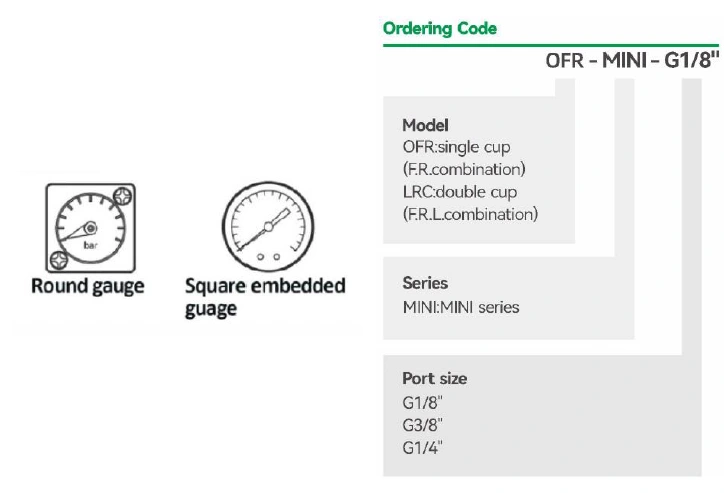

| Gauge | Standard: Round type (G1/8") | Gauge | Standard: Round type(G1/8') | ||
| Option: Square embedded type | Option: Square embedded type | ||||
| Port size | G1/8", G3/8", G1/4" | Port size | G1/8", G3/8", G1/4" | ||
| Capacity of air bowl | 90CC | Capacity of air bowl | 90CC | ||
| Capacity of drain bowl | 60CC | ||||
