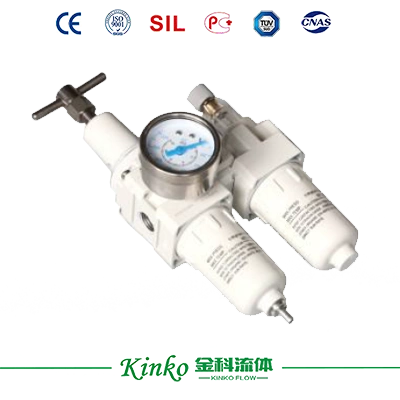

KINKO KJW2000-02A filter regulator offers G1/4" port, 0.05-0.85MPa range and -40~60℃ operating temperature with zinc alloy or aluminum housing, suitable for extreme temperature pneumatic systems.
Product Overview
Specifications
 |
 |
||||
| Model | KJW2000-02J series | Model | KJW2000-02J series | ||
| Material | Housing | Zinc alloy | Material | Housing | Aluminum alloy |
| Bowl | Aluminum alloy | Bowl | PC | ||
| Sealing | NBR | Bowl guard | Aluminum alloy | ||
| Adjusting knob | Stainless steel | Sealing | NBR | ||
| Regulating range | 0.05~0.85 Mpa | Adjusting knob | Stainless steel | ||
| Max. service pressure | 1Mpa | Regulating range | 0.05~0.85 Mpa | ||
| Ensure pressure resistance | 1.5Mpa | Max. service pressure | 1Mpa | ||
| Filtering accuracy | 40μm or 5μm | Ensure pressure resistance | 1.5Mpa | ||
| Recommended oil | ISOVG 32 | Filtering accuracy | 40μm or 5μum | ||
| Temperature | -40~60℃ | Recommended oil | ISOVG 32 | ||
| Valve type | Diaphragm type | Temperature | -40~60℃ | ||
| Gauge | Standard: Round type (G1/8") | Valve type | Diaphragm type | ||
| Port size | G1/4" | Gauge | Standard: Round type (G1/8") | ||
| Capacity of air bowl | 25CC | Port size | G1/4" | ||
| Capacity of air bowl | 25CC | ||||
| Capacity of drain bowl | 15CC | ||||
Application & Case
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendum laoreet. Proin gravida dolor sit amet lacus accumsan et viverra justo commodo. Proin sodales pulvinar sic tempor. Sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Nam fermentum, nulla luctus pharetra vulputate, felis tellus mollis orci, sed rhoncus pronin sapien nunc accuan eget.
