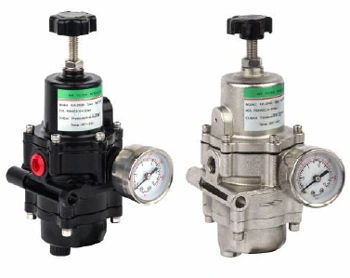

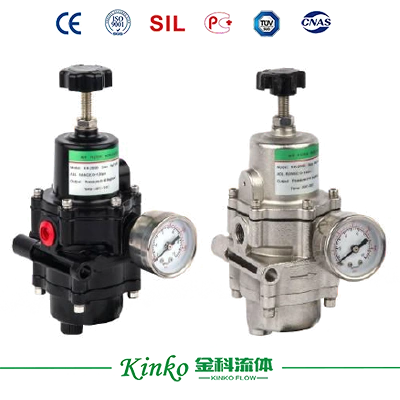

KINKO KK-200B air regulator offers G1/4" port, 0.05-0.85MPa range and aluminum or 316 stainless steel body, providing precise pressure control for pneumatic instruments and actuators.
Specifications
| Model | KK-200B series |  |
| Material | Aluminum alloy | |
| S.S.316 | ||
| Regulating range | 0.05~0.85 Mpa | |
| Max. service pressure | 1Mpa | |
| Ensure pressure resistance | 1.5Mpa | |
| Temperature | -5~60℃ | |
| Gauge | Standard: Round type (G1/8") | |
| Port size | G1/4", NPT 1/4" | |
| Model | SFR series |  |
| Material | S.S.316 | |
| Regulating range | 0.05~0.85 Mpa | |
| Max. service pressure | 1Mpa | |
| Ensure pressure resistance | 1.5Mpa | |
| Temperature | -5~60℃ | |
| Gauge | Standard: Round type (G1/8") | |
| Port size | NPT 3/8" |
