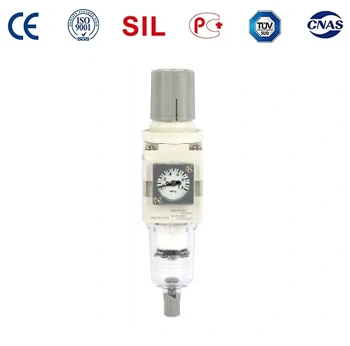

KINKO AW2000F-02 filter regulator features G1/4" port, 0.05-0.85MPa regulating range and 25CC bowl capacity, ensuring reliable air filtration and pressure regulation for pneumatic valve automation.
Product Overview
Specifications
| Model | AW2000F-02 series |  |
|
| Material | Housing | Aluminum alloy | |
| Bowl | PC | ||
| Sealing | NBR | ||
| Adjusting knob | POM | ||
| Regulating range | 0.05~0.85 Mpa | ||
| Max. service pressure | 1Mpa | ||
| Ensure pressure resistance | 1.5Mpa | ||
| Filtering accuracy | 40μm or 5um | ||
| Recommended oil | ISOVG 32 | ||
| Temperature | -5~60℃ | ||
| Valve type | Diaphragm type | ||

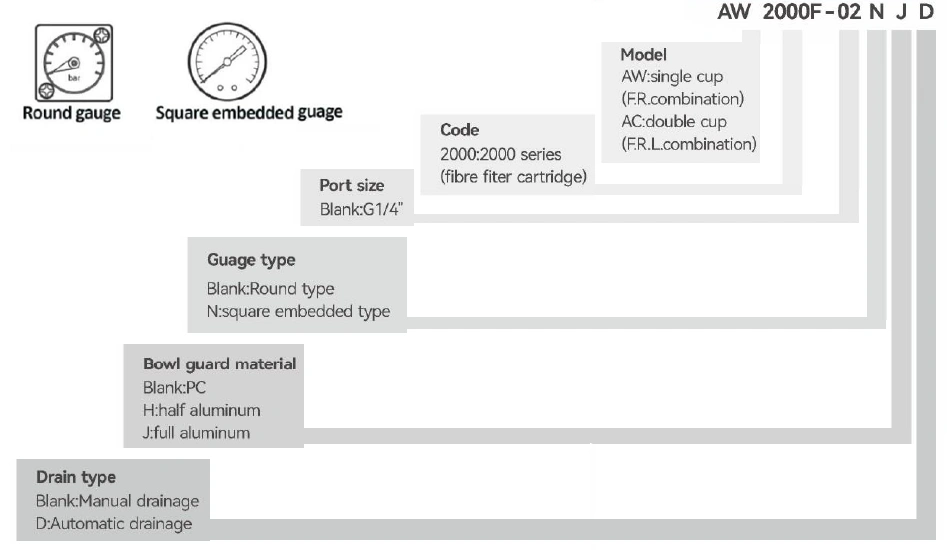

| Gauge | Standard:Round type(G1/8") | ||
| Option: Square embedded type | |||
| Port size | G1/4" | ||
| Capacity of air bowl | 25CC | ||

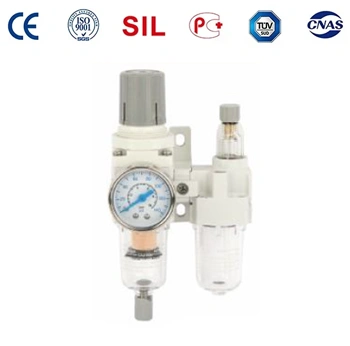

| Model | AC2000F-02 series |  |
|
| Material | Housing | Aluminum alloy | |
| Bowl | PC | ||
| Bowl guard | Aluminum alloy | ||
| Sealing | NBR | ||
| Adjusting knob | POM | ||
| Regulating range | 0.05~0.85 Mpa | ||
| Max. service pressure | 1Mpa | ||
| Ensure pressure resistance | 1.5Mpa | ||
| Filtering accuracy | 40μm or 5μm | ||
| Recommended oil | ISOVG 32 | ||
| Temperature | -5~60°℃ | ||
| Valve type | Diaphragm type | ||
| Gauge | Standard:Round type(G1/8') | ||
| Option: Square embedded type | |||
| Port size | G1/4" | ||
| Capacity of air bowl | 25CC | ||
| Capacity of drain bowl | 15CC | ||
