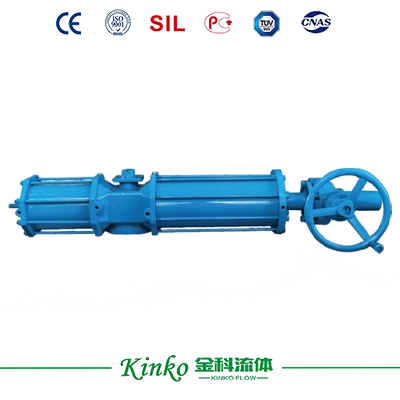

AW series double-acting pneumatic actuator features dual-cylinder construction for high output torque and smooth operation, ideal for ball and butterfly valves in industrial automation.
Product Overview
Adjustable angle ± 5 ° from both ends; There are room-temperature type, high-temperature type, and low-temperature type. Nitrile rubber is used under normal working conditions, while fluororubber or silicone rubber is used at high or low temperatures. The output shaft installation connection holes come in various shapes (square holes, shaft key holes, flat holes) and can be equipped with butterfly valves, ball valves, air dampers, baffle valves, plug valves, louver valves, etc.
Specifications
Double acting actuator output torque (Nm)
| Model | Input air supply pressure (unit: Bar) | ||||
| 3 | 4 | 5 | 6 | 7 | |
| AW13 | 515 | 620 | 770 | 930 | 1080 |
| AW17 | 950 | 1270 | 1590 | 1910 | 2230 |
| AW20 | 2150 | 2870 | 3580 | 4300 | 5020 |
| AW25 | 3360 | 4480 | 5600 | 6720 | 7850 |
| AW28 | 5150 | 6860 | 8580 | 10300 | 12020 |
| AW32 | 7620 | 10150 | 12680 | 15220 | 17760 |
| AW35 | 10120 | 13500 | 16870 | 20250 | 23620 |
| AW40 | 13220 | 17630 | 22040 | 26450 | 30860 |
| AW50 | 22460 | 29950 | 37440 | 44930 | 52420 |
| AW60 | 47300 | 63070 | 78840 | 94610 | 110380 |
