KINKO JK declutch override gear box enables manual valve operation via handwheel, ensuring reliable emergency control during power failure with compact, durable construction.

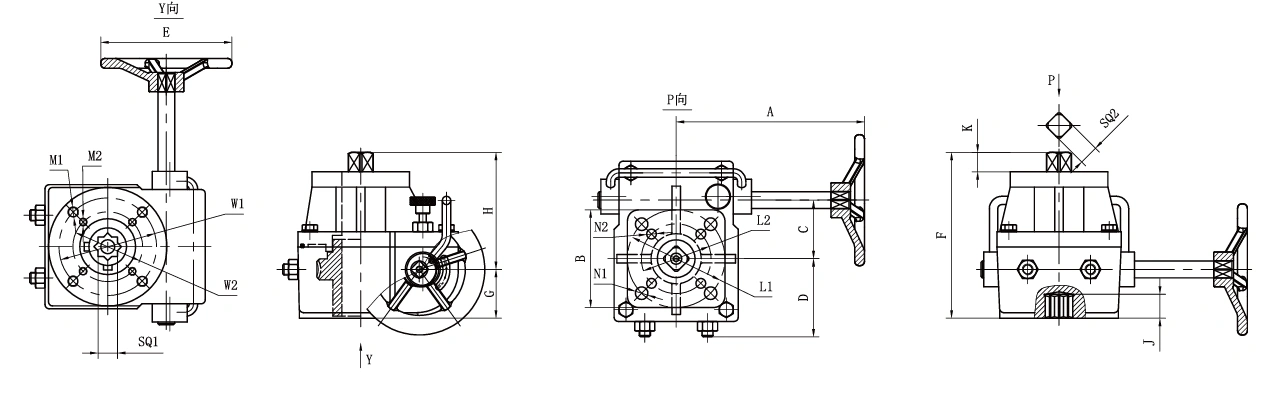

Specifications
| Item | JK-1 | JK-2 | JK-3 | JK-4 | JK-5 | JK-6 | JK-7 | JK-8 |
| A | 150 | 180 | 200 | 260 | 310 | 395 | 435 | 440 |
| B | 70 | 93 | 113 | 129 | 163.5 | 165 | 235 | 300 |
| C | 44.7 | 54 | 65.5 | 82.5 | 109 | 135 | 170 | 210 |
| D | 60 | 70 | 80 | 105 | 115 | 120 | 160 | 170 |
| E | Φ180 | Φ200 | Φ280 | Φ320 | Φ400 | Φ500 | Φ600 | Φ600 |
| F | 120 | 132 | 153 | 195 | 215 | 236 | 243 | 252 |
| G | 33 | 39 | 40 | 57 | 54 | 62 | 60 | 65 |
| H | 87 | 93 | 113 | 138 | 161 | 174 | 183 | 187 |
| J | 19 | 21 | 27 | 32 | 43 | 54 | 58 | 58 |
| K | 15 | 19 | 22 | 28 | 38 | 46 | 55 | 55 |
| M1 | M8×4 | M10×4 | M12×4 | M16×4 | M20×4 | M20×4 | M16×8 | M16×8 |
| M2 | M6×4 | M8×4 | M10×4 | M12×4 | M16×4 | M16×4 | - | - |
| W1 | 70 | 102 | 125 | 140 | 165 | 165 | 200 | 254 |
| W2 | 50 | 70 | 102 | 125 | 140 | 140 | - | - |
| SQ1 | 14 | 17 | 22 | 27 | 36 | 46 | 55 | 55 |
| N1 | Φ10×4 | Φ12×4 | Φ14×4 | Φ18×4 | Φ22×4 | Φ22×4 | Φ18×8 | Φ18×8 |
| N2 | Φ8×4 | Φ10×4 | Φ12×4 | Φ16×4 | Φ18×4 | - | - | - |
| L1 | 70 | 102 | 125 | 140 | 165 | 165 | 200 | 254 |
| L2 | 50 | 70 | 102 | 125 | 140 | - | - | - |
| SQ2 | 14 | 17 | 22 | 27 | 36 | 46 | 55 | 55 |
