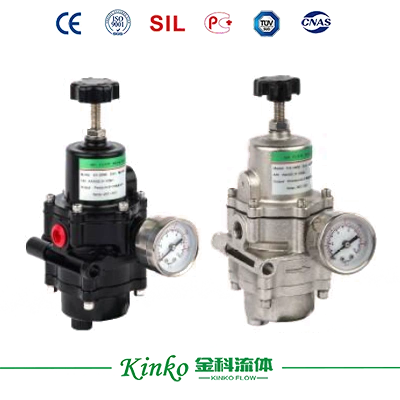

Pressure Reducing Valve

The various types of filter pressure reducers produced by our company are specially designed and produced according to the needs of our production site in China. It is more progressive in terms of greater output flow and more accurate stability. Widely used in self-control systems, especially suitable for filtering and reducing the pressure of air sources for electrical converters, valve positioners, various pneumatic instruments, and actuators.

Max. input pressure

15kgf/cm²(231psi)

Max. output pressure

4.2kgf/cm²(57psi) 8.4kgf/cm²(120psi)

Air Connection

NPT(PT1/4)

Get a Quote

Download Drawings

Product Overview

Exquisite craftsmanship, intricate structure, and beautiful appearance.

Pure filtration, equipped with PE microporous filter element, can be repeatedly used.

Aluminum alloy castings undergo anodizing treatment and surface spraying, making them sturdy, aesthetically pleasing, and corrosion-resistant.

The material of the key joint is stainless steel.

Easy and effective sewage discharge.

Integrated with the electrical converters and valve positioners produced by our factory, they are shipped together, making installation more convenient and the structure more exquisite and beautiful.

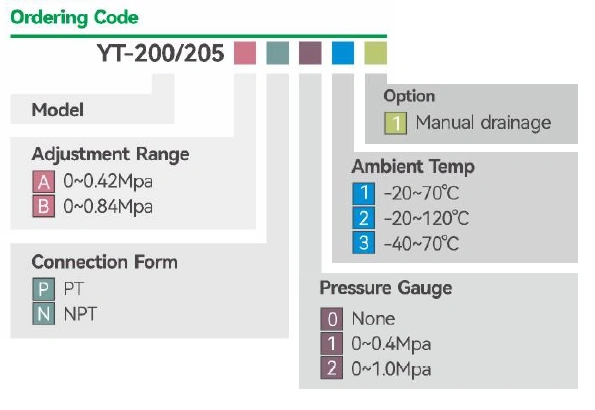

Specifications


Item Type	YT-200		YT-205
	A	B	A	B
Maximum input pressure	15kgf/cm²(231psi)		15kgf/cm²(231psi)
Maximum output pressure	4.2kgf/cm² (57psi)	8.4kgf/cm² (120psi)	4.2kgf/cm² (57psi)	8.4kgf/cm² (120psi)
Air Connection	NPT(PT1/4)
Gauge Connection	NPT(PT1/4)
Ambient Temp.	-20 ℃~70 ℃ -20℃~120 ℃ -40 ℃~70 ℃ (normal temperature) (high temperature) (low temperature)
Minimum filter size	5 microns
Material	Aluminum Diecasting		Stainless Steel
Weight	0.6kg(1.71b)		1.4kg(3.01b)
